Interactive Objects

Voxel Play provides a base class that you can use for your interactive objects.

This class allows your gameobject to receive a notification when the player approaches, goes away or triggers some action on the object (usually pressing key E).

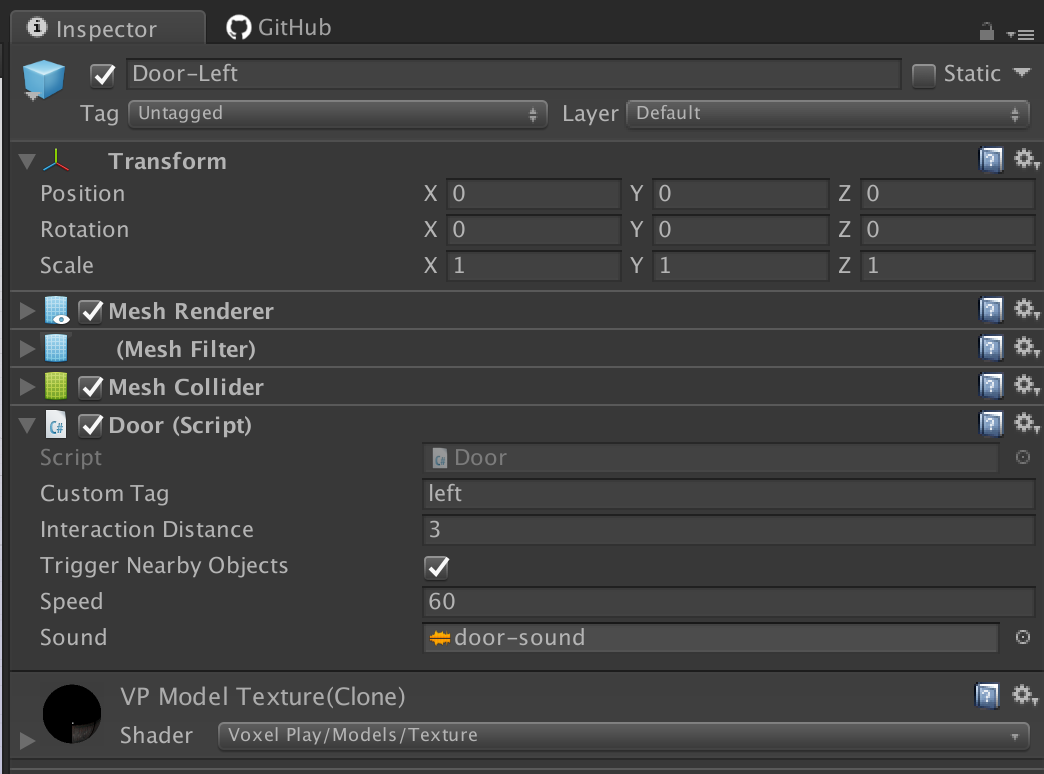

A door is a perfect example for an interactive object. You can find a few Doors voxels in the sample world. The door voxel is a custom voxel whose prefab has a Door script:

This door script inherits from VoxelPlayInteractiveObject as follows:

    public class Door : VoxelPlayInteractiveObject {
    ...
    }

An object that inherits from VoxelPlayInteractiveObject has the following fields and methods:

public string customTag;
A public field that you can use to tag this object. For example in a double door, you can differentiate the left door from the right door using this field.

public float interactionDistance = 4f;
The maximum distance from which the player can trigger an action on this object.

public bool triggerNearbyObjects;
Use this option to trigger nearby objects when this one is activated. For example when you open a double door triggering the left door, it will also open the right door.

public bool playerIsNear;
True if the player is near the object.

protected VoxelPlayEnvironment env;
You can use this field to access Voxel Play Environment API from the object itself.

public virtual void OnStart() {}

You can override this method to add initialisation code to your interactive script.

public virtual void OnPlayerApproach() {}

Called when the player approaches (see interactionDistance)

public virtual void OnPlayerGoesAway() {}

Called when the player goes away (see interactionDistance)

public virtual void OnPlayerAction() {}

Called when player triggers the object (ie. press key E on the object)
